ELECTRICAL SYSTEM OVERVIEW

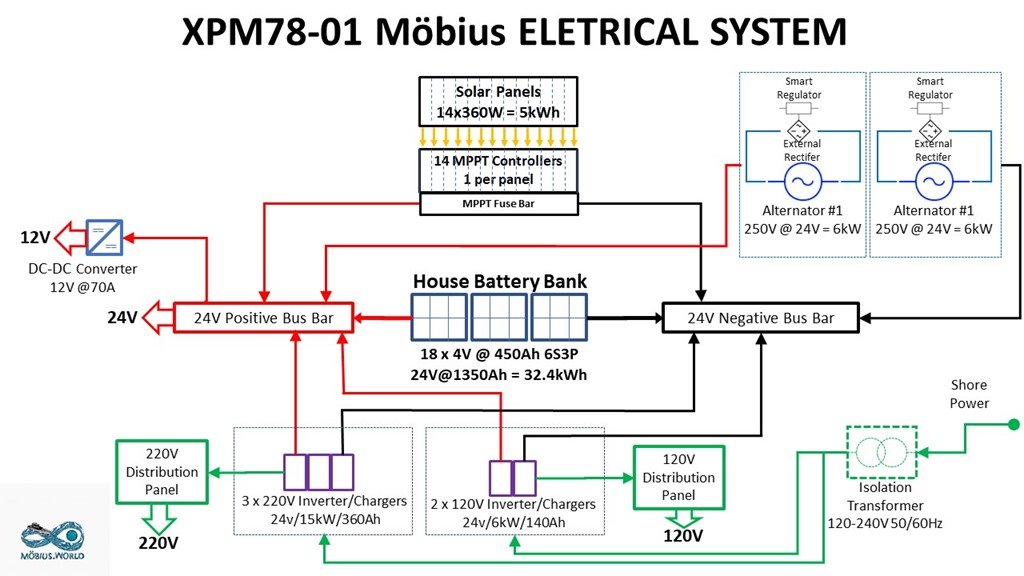

XPM Electrical System

The Electrical System on our new boat can best be described as a DC Battery Based electrical system meaning that ALL of the electrical power consumers on the boat, both AC and DC, get their power from the large 24 volt “house” battery bank. This is in contrast with many other boats that could be characterized as “AC Based” boats because their systems are optimized for AC inputs from onboard generators and shore power. Both models work well and the question is not which system is “best” but which system is best for a given boat, owner and use case.

Given that by design and use case there is no generator onboard Möbius and shore power is rarely available as we live on anchor almost all the time, a DC Battery Based boat is the just right, just for us solution.

Our large 24 volt 1350Ah battery bank is charged from either the +5kW bank of 14 solar panels and/or via the two large alternators, 250A @ 24V each, 12kW total, driven off the main engine when on passage.

This is very much a “world boat” so all four of the most common voltages are available onboard at all times. 24V DC and 220V 50Hz AC are the primary voltages we use and 12V DC and 120V 60Hz AC outlets are located throughout the boat as well for devices and guests which require these voltages

There will be shore power connectors at the front and rear for those infrequent occasions when the boat is hauled out for maintenance or to leave for extended times for trips back to be with our three Grandkids and other family and friends. These shore power connections come aboard through a Victron Isolation Transformer primarily to ensure we have no connection from the boat to shore side grounding wires and gives us the significant advantage of being able to plug into any shoreside power from 100-240 Volts @ 50 – 60Hz.

BASIC ELECTRICAL SYSTEM COMPONENTS:

  • House Battery Bank: 18 FireFly Carbon Foam L15+ 450Ah @ 4V batteries connected in three 24V banks 6S3P (6 Serial 3 Parallel) = 1350Ah @ 24V = 32kWh
  • 220 Volt Inverter/Chargers:  3 Victron MultiPlus 24V 5000W 120A
  • 120V Inverters:  2 Victron MultiPlus 24V 3000W 70A
  • DC-DC converters Victron Orion 24V to 12V 70A
  • Engine Alternators:  2 Electrodyne 24V @ 250A = 6kW each = 12kW total output.
    • Both with remote rectifiers and remote “smart regulators”
  • Battery Monitor: Victron BMV 712s for monitoring each of the 3 battery banks and the overall DC electrical system.
    • Augmented with Maretron monitoring
  • Solar Panels: 14 each 96 cell 360W = 5.04kW peak total
  • MPPT Controllers:  14 Victron SmartSolar 100/30 MPPT controllers
    • one per solar panel
  • Engine Start Battery:  2 FireFly G31 110Ah Carbon Foam batteries in series 110Ah @ 24V
