Rails, Grids & Poles –  Möbius Progress Update August 25-28, 2019

Rails, Grids & Poles – Möbius Progress Update August 25-28, 2019

Today (Friday Aug 30, 2019) is a national holiday here in Turkey for Victory Day so all of Team Möbius and Naval Yachts is taking a well deserved 3 day weekend.  Victory Day in Turkey commemorates the key Turkish victory against Greek forces in the Battle of Dumlupınar (August 26-30, 1922). The outcome of the battle, which took place in Kütahya province in western Turkey, determined the overall outcome of the Turkish War of Independence (1919-1923).

Christine and I flew back into Antalya on Wednesday evening after a fabulous time away in Napoli and Sardinia so I was able to spend several hours aboard Möbius taking pictures and discussing all the new progress with the various team members so lets go aboard and see what they accomplished while we were away.


IMG_20190829_102942You don’t even need to go aboard to see the most visually obvious bit of progress this past week as the Starboard/Right side Paravane A-Frame pole or boom makes its presence very well known.

Everything is just tacked in place at this point to test out all the various dimensions and fits.
IMG_20190829_102936This triangular brace provides a solid support to securely lock the A-Frame in its stowed position as shown here.  The two inner pipe ends of this brace will be bolted to the Arch so they can be removed if needed when the A-Frames are tipped down on deck for canal mode journeys.  They are just tack welded here for fitting purposes.
IMG_20190829_103213I had to move all the way to the Foredeck to be able to get this more complete view of this vertical pole and give it some relative scale.  Overall length from the bottom hinge pin on top of the Rub Rail to the upper end is 6.2m/20.3ft which is easily the highest point on the boat.  However both these Paravane A-Frames and the whole Arch beside it can be folded down to dramatically reduce the Air Draft, the height above the water line for situations such as navigating canals or putting the boat in a hunkered down hurricane mode.
Paravane rigging Aft v2This is a much earlier version if the Paravane A-Frames and rigging with much shorter pole lengths but will show you how the A-Frame hinges on the beefy Rub Rails and the basic components of the rigging to deploy and control the A-Frame booms and the “fish” or paravanes which are suspended from the outer ends of the booms and run in the water about 5m/18ft below the surface.


** NOTE:  Don’t be confused by the apparent two A-Frames on each side as this design/analysis rendering is showing the A-Frames in both stowed (vertical) and deployed positions.  There is only one A-Frame on each side.
For those interested in the rigging:

  • GREEN controls the position of the A-Frame from stowed/vertical to deployed.  This line turns through a block on the top (not as shown) corner of the Arch and runs down to an electric winch mounted horizontally on the outside of the vertical Arch pipes.
  • RED controls the UP/DOWN position of the Paravanes/Fish allowing the depth in the water to be adjusted and for launch/retrieval of the Fish from their storage racks on the outside of the boom poles.
  • ORANGE are the Fore and Aft Guy lines which add strength to the fore/aft forces on the end of the A-Frame pole.

NOTE:  These are early iterations of the rigging and I will provide an updated version as the build continues.

IMG_20190829_102404Here is close up of the top/outer end of the A-Frame boom poles with the plates tacked in place and edges well chamfered to allow full penetration of the welds.  The smaller diameter pipes on the left are the angled tension poles of the A-Frame.

Vertical pole is 110mm/4.5” pipe with 8mm thick walls and the smaller pipe is 80mm/3.14” x 5mm wall.
IMG_20190829_102534At the other bottom end of the vertical A-Frame pole this massive assembly of 20mm / 3/4” thick plates and the disc inserted into the pole with full chamfer at the bottom of more through welds.
IMG_20190829_102501These are some of the same kind of fittings where the smaller diameter angled poles of the A-Frame attach to the outer end of the vertical larger pole.
IMG_20190829_102822These are the pair of hinge halves which will be inserted deep into the hull framing through the Rub Rails.  These are machined from 50mm / 2” thick aluminium plate and will have SS hinge pins.
IMG_20190829_102841The Starboard/Right side hinge at the bottom of the vertical A-Frame pole with all its parts tacked in place for test fitting.  Comparing the length of the hinge plates in the upper photo you can see how these plates extend deeply through the 10mm thick Rub Rails and down the hull framing.  When fully welded these will be about 5X the required engineering strengths which helps us SWAN when we have the Paravanes deployed.


SWAN = Sleep Well At Night
There will be thick Delrin washers on both sides of the inner hinge cylinder to keep it centered and moving freely.  The SS pipe is being standing in for test fitting only and will be a SS through bolt in the final assembly.


IMG_20190829_102914We designed the Arch and Paravane A-Frames to do their jobs well and while not compromising the access when walking along the side decks.  This picture confirms what we succeeded very well I think.



IMG_20190829_103153Safety is the first of our four fundamental SCEM principles, Safety Comfort Efficiency Maintenance and you can see many examples of this in the photo above and this shot along the top of the solid railings on the bow’s pulpit and down the line of stanchions on the Port side.  If you look closely (click to enlarge any photo) you can see other examples such as the full set of handrails along the top of the Pilot House roof, the solid hand rail assemblies and stanchion poles and the A-Frame poles themselves all of which combine to make it very safe to walk along these side decks should it ever be neccessary in eXtremely rough seas.
There should never be any need for either of us to be outside the Pilot House or SkyBridge in such conditions as we have designed all the systems and functions of the boat to preclude this, however we also design with “readiness for the unexpected” in mind and when it comes to Safety we try to account for such unexpected “Black Swan” type events as much as possible.


IMG_20190829_110539Uğur and Nihat were also busy on the Aft Deck fabricating and fitting the solid handrails for the Aft Starboard corner of the deck where the stairs go down to the Swim Platform.

One of the triangular support braces is tacked up in the foreground.
Aft Stbd Handrail Perspective ViewAft Stbd Handrail Top ViewYiğit and I were able to continue our collaboration while I was away in Italy using Email and WhatsApp and Yiğit came up with this design for the Aft Starboard handrail.


There will also be a handrail along the side of the “dog house” on the left and there will be three Dyneema lifelines snapped across the stair well opening.

IMG_20190829_102710Here is the Aft Stbd Handrail all tacked up and ready for fitting into the same type of Delrin lined sockets through the Rub Rails as with all the other Stanchions and Handrails.
IMG_20190829_110609Moving inside down the steps from the Aft Deck, the stepped aluminium and wood grid is all in place and forms an extremely rigid transition between the Galley cabinetry up top here and the Guest Cabin down below.  Yiğit and I tried out our own stress test on this transition grid with each of us standing on one of those two aluminum step frames and jumping up and down on them.  Solid as a rock!


Several of you asked why this type of stepped transition was used rather than bringing a full bulkhead up and you can hopefully see why here in this photo.  The bulkhead running along the top of the photo is the most massive of any on the boat and it spans the entire beam/width of the hull to form the very aft end of the Pilot House and SuperSalon.  Then on the left you can see how the top of the watertight Basement area creates the floor of the SuperSalon and the 3/4 wall in the Guest Cabin which along with the stairs forms an extremely strong combination of boxed beams surrounding this transition area between the Galley and the Guest Cabin.  Building it in this way gave us both eXtremely strong and rigid framing as well as creating maximum use of both spaces.  We are very pleased with how this has turned out now that we can see it in real life.

011 Interior GA plan Rev CThis transition takes a while to visualise and hopefully looking at this GA plan view and a few of the renderings of the finished Galley and Guest Cabin will help.


MOBIUS_SALOON_RENDER (4)Looking straight down at this plan view of the whole SuperSalon and comparing this to the previous photo of the transition grid above you can see how the countertop with the induction stovetop and Speed Oven below at the end of the Galley on the right side here extends into the Guest Cabin space.



It may help if you look at where the bottom step down into the Galley area is in this rendering and the photo above to get an idea of the overlap.


Guest Cabin deskMoving down into the Guest Cabin and looking across to the forward Starboard corner where the Basement bulkhead forms the Guest Cabin wall on the left side here you can see how the stepped transition is used to create the dropped ceiling on the upper left and how the bookcase fits in under this.
IMG_6566Flipping back to reality here is what that transition step grid looks like from the Guest Cabin side.
011 Master Cabin LayoutMeanwhile, forward in the Master Cabin Ömer and Selim have been busy building the wall grid for the shower and Head area in the Cabinetry workshop and then bringing them on board and fitting in place.
IMG_20190829_112404The door into the Head up by the Vanity sink is now in place and the outer corner of the shower is framed in at the bottom of this photo along wtih the half wall which makes the transition from the glass wall to the Port side of the hull.  There will be a similar header frame for the corner above to provide support for the aluminium channel which the edges of the two etched glass wall panels will fit into.
IMG_20190829_112419Opening the door you can see where the toilet will sit at the far end up against the bulkhead with the Forepeak on the other side.  Access to all those red handled ball valves on the hot and cold manifolds as well as all the hose connections to the drains and into the water tanks below the floor……..
Master Head diagonal close…… will be provided through removable backs inside the cabinets running down the hull sides and below the seat in the shower which you can visualise better with this quick rendering.
Master Head AboveThis overhead shot shows the overall layout of the front end of the Master Cabin with the two large hatches overhead and the Vanity sink in the center and wardrobes flanking the Starboard/Right side of the hull.
IMG_20190829_112456Standing with my back inside the Head area with my back against the Forepeak wall looking aft you can see the inside of the half wall and the construction of the wall grid.
Not bad progress for a four day work week and we’ll be back to full time again next week.

Hope you enjoyed this latest progress update and please do send in any and all comments, ideas and suggestions in the “Join the Discussion” box below.

Thanks for all your input and for joining us on this adventure.  See you again next week for more.

-Wayne


Missing in Action but NOT Progress: Weekly Möbius Update Aug.19-23, 2019

Missing in Action but NOT Progress: Weekly Möbius Update Aug.19-23, 2019

Christine and I are in Italy for a combined anniversary celebration in Napoli last weekend and now a chance to catch up with dear friends on their catamaran as we sail around the island of Sardinia.  While I may be MIA the rest of Team Möbius, the ones who really matter, were hard at work back in Antalya and they made great progress in all the various facets of work from cabinetry to electrical, plumbing and aluminium.  When the cat’s away the mice really do play!

So with great thanks to our Möbius Project Manager Yiğit for taking on extra duties as photographer while I’m away I am delighted to bring you this week’s progress update and so let’s jump right in.

20190820_063633546_iOSNihat on the left and Uğur continue to work their way through the diminishing list of aluminium jobs to complete and those of you with sharp eyes and memory you can see evidence of one of those jobs in this photo.
20190820_063745720_iOSCan you see it?  How about if I take you up on the foredeck and move in a bit closer?

Correct!  They are building and fitting the aluminium stanchion posts.
20190820_063723960_iOSFurther back on the Port/Left side deck where the Pilot House ends, you can see how the stanchion posts join together with the pipe railings for the side gates to provide eXtremely safe and sturdy protection along all parts of the deck to make sure we always stay onboard.
IMG_6578Moving forward along that Port side deck you can see how the stanchion posts continue forward and then tie into the pulpit railings on either side of the bow.


All the pipe for the stanchions, pulpit, pushpit and gates are made from 40mm / 1.6” OD pipe with 6mm thick walls which are a snug fit into the socket pipes which are welded all the way through the 10mm thick Rub Rails down each side.  To eliminate any wobbly and prevent any corrosion between the stanchion and socket pipes, black Delrin bushings you can see at the base of each stanchion have been machined and press fit in place.


Stanchion & Socket in Rub RailThere will be domed aluminium caps atop each stanchion which are now being machined along with the short aluminium bushings that will soon be welded into those three holes in each stanchion to provide a smooth surface for the Dyneema lifelines to run through without chafing.


Dyneema is a synthetic fibre line which is stronger than the typical stainless steel stranded wire used for most lifelines and it is lighter and much easier to see evidence of weakening over the years whereas SS wire usually hides cracks or faults until it lets go.  Also much nicer on the hands and no chance of any “meat hooks” as we refer to an individual strand of SS wire when they crack and break off leaving a nasty hook to catch and cut your hands.


IMG_6581The stanchions and railings are 1m / 39” above the deck which is much higher than most boats but very much by design for the XPM boats for added safety.  If you were to be thrown into lifelines at this height they would catch you well above the waist whereas the more typically shorter lifelines are below the waist and can result in flipping you overtop the lifeline and overboard.
Our primary Person Overboard strategy is simple; don’t!   High lifelines are one of the best ways to ensure we stay onboard at all times. If you do go over the side it would most likely be Ciao for you because it will happen at O’dark Thirty in very nasty weather.  The scenario doesn’t play out much better and often much worse if you are clipped onto the boat with a tether as you end up trapped on the end of your tether partially submerged and nigh on impossible to be brought onboard.  Hence very high and very strong lifelines and railings.


IMG_6575Dropping down to check out the Basement we find more evidence of Uğur and Nihat’s handiwork where they are fitting the watertight AL plates which seal off the coffer dams for the active stabilisers on each side of the hull.  This coffer dam with the Basement exiting Sea Chest is on the Starboard/Right side and the Port side is shown below.
IMG_6574Coffer dams are as the name implies, there to increase the safety factor in the rare event that an active stabilizer fin strikes something solid at speed and tears out or through the thick hull plates.  While the protruding fins do introduce this possibility of being struck it is quite low, Safety is top priority for XPM boats so we design and build accordingly, hence these coffer dams.
With the eXtreme plating thickness on all parts of the hull and all the welded in support frames for the stabilizer hardware the probability of breaching this area and creating a significant leak is eXtremely low but never zero so these strong cover plates are bolted and sealed in place with gaskets.  Inside each coffer dam there is a sensor connected to an alarm system that would let us know if any water did collect in the bottom.

As you will see a bit later in this blog, Christine and I have chosen to use passive rather than active stabilizers so these coffer dams will be empty but still very well sealed.  Throughout the design of  this first XPM we have done our best to “future proof” these boats as much as possible by allowing for choices such as active/passive stabilizers by including everything needed for the installation of any of them within the initial design and build. In this case, if/when we or future XPM owners chose to install active stabilizers the hull and coffer dams are all ready for a relatively fast and cost effective installation.

20190824_114222366_iOSLooking up overtop of the Basement Sea Chest Cihan and his plumbing team continue running more of the various pipes and hoses  White hose against the aft Basement WT Bulkhead is sanitation hose carrying Black Water from the heads to the holding tank.
The black lines in the foreground on the ceiling are part of the AirCon system with 20mm/ 3/4” PPR pipes (similar to PVC) wrapped in thick black EPDM insulation which carry the cold water from the chiller system to the individual air handlers in each cabin and the SuperSalon.


IMG_6567Above the Basement ceiling/SuperSalon floor we find more white sanitation hoses being installed.  Left is the Vent box with the white being the vent for the Black Water tank in the Basement and the black hoses being vents for the fuel tanks.
On the right is the Fuel Fill box which also has the two white sanitation hoses for pumping out the Black Water and Gray Water tanks though most of the time we pump out our Black Water through the Sea Chests when far enough out at sea.


20190824_114059531_iOSUp forward on the Port side of the Master Cabin Head/Shower we find more plumbing progress with the installation of the Hot and Cold domestic water manifolds with all these red handled PVC ball valves.


These ball valves also make the transition from 20mm/ 3/4” PPR pipe which are the primary supply lines bringing hot and cold water from their sources to the 15mm/ 5/8” PEX tubing which connect to each of the hot and cold water consumers; sinks, shower, toilet, bidet.
IMG_6569  We also use the cold water manifold for the fresh water washdown pump in the Forepeak on the other side of this WT Bulkhead wall.
The black EPDM insulated line above the manifolds is the Domestic Hot Water DHW loop which runs the length of the boat to deliver hot water to every hot water consumer as soon as you turn on the tap eliminating the usual need to wait for the water coming out of the sink/shower tap to get hot and wasting a considerable amount of water in the process.  Efficiency is one of our four primary design principles so we seek out every possible way to increase the efficiency of all systems on board these XPM boats.


IMG_6570Not always as visibly evident rest assured that Hilmi and his electrical team continue to install more wire trays and fill them with more and more nautical miles of gray AC and black DC wiring.
The black flex hose on his right is conduit for the wires which run up through the window frame mullions in the SuperSalon with other wiring in the horizontal white perforated trays just above the floor.


IMG_6571Looking up in front of where Hilmi is sitting you can see how he has also installed trays on the underside of these frames where the outer side decks run.  Vent Box above.
IMG_6564More trays at the aft Starboard/Right side end of the Guest Cabin are starting to fill up with wires and clear water hoses at the bottom.
20190820_064330943_iOSMoving aft to the Starboard/Right side “wing” of the Workshop alongside the Engine Room Enclosure wall Nihat and Uğur have wrestled the Day Tank aboard sporting its mounting tabs and ready to be test mounted to the WT Bulkhead at the far end.
20190820_064348887_iOSMatching mounting tabs have been welded to the ER Enclosure wall and threaded bosses welded to the vertical T frames on the WT Bulkhead.
20190820_114258148_iOSWith the mounts installed and Day Tank successfully test mounted, Mummy and his insulation team can apply the thick AL foil overtop of the black EPDM insulation prior to installing the Day Tank and the AlucoBond panels.


IMG_6561One of the most eXciting projects this week is THIS!  Uğur and Nihat started to fabricate the paravane A-Frames.  As you might guess, the pipe on the right is the main “boom” and the two on the left will be the angled tension pipe that attaches to the tabs just below the end of the main boom.

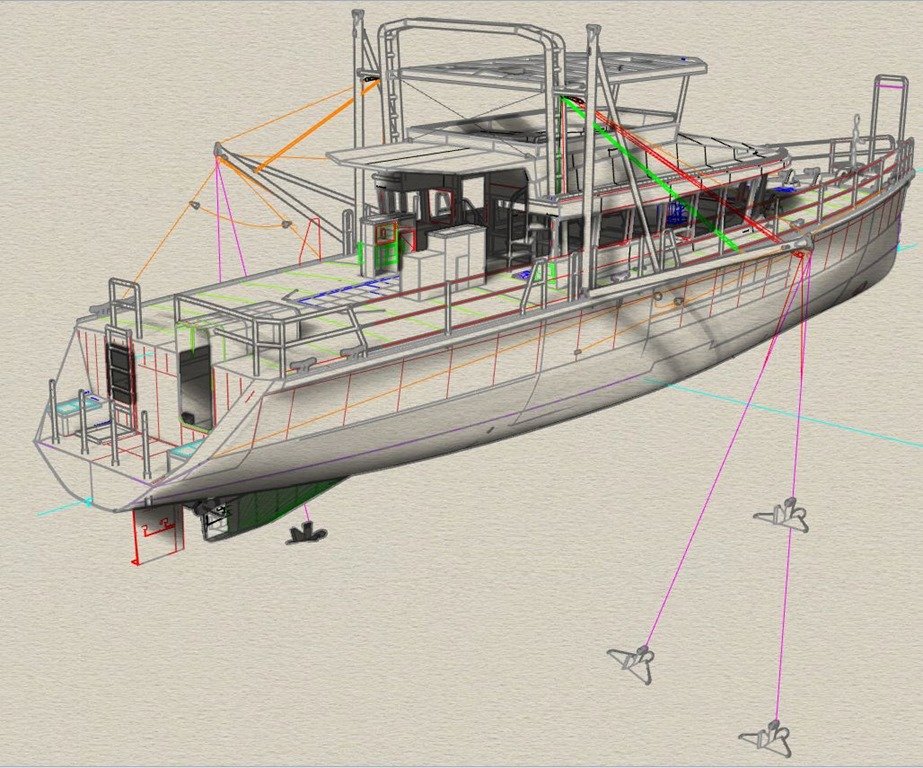

Paravane rigging System v2Hopefully this rendering from our Paravane design testing phase will help more than confuse and give you a better sense of the components of the overall Paravane system.
** Important to note that this rendering shows the hinged A-Frames in both their “up” vertical stowed position and their “down” or deployed position.  Similarly there are multiple images the one paravane, sometimes called “fish” or “birds” as we were analyzing different positions, depths and angles.

If these Paravane A-Frames look familiar to you it is likely because many commercial fishing boats use the same system and use them daily in truly eXtreme conditions to help keep their boat decks as stable as possible to enable them to work safely and at all in such conditions.


Paravane rigging Aft v2

We went through many, many iterations of the whole system, particularly the rigging and the final design is considerably different than this early design with the green boom lift now going out to the end of the booms and the booms being extended to be over 7m/24’ long.
To the uninitiated the rigging may look a bit intimidating and complex but for us two sailors, and really to anyone after a few uses, it is a very simple and straightforward setup and we have simplified is MUCH more in the final design.  I’ll go into those details in future posts as we install the Paravane rigging.


When deployed in the water, each paravane runs about 5m/16’ below the surface of the water and their shape is such that they “fly” through the water with a slight downward pull.  When the boat rolls towards one of these “fish” they dive down lower and provide resistance when the boat tries to pull them back up.


IMG_6558Here is a close up of the outer end of the A-Frame boom with thick aluminium tabs and gussets let into the equally thick walled 10mm / 3/8” pipe which provide all the attachment points for lines and the angled pole of the A-Frame which you can see in the upper background.  Once everything is all test fit to be just right every joint will be welded through.


Paravanes are somewhat similar to the pole a tightrope walker uses.  Having one of these paravanes on each side provides two opposed points to help us remain “balanced” and goes a long ways towards countering any forces trying to roll the hull along her lengthwise axis when conditions warrant.  While the forces within this system can be very high at times, one of the relationships you come to understand is that if a hull has lower initial stability, takes less force to cause it to roll, it takes equally less force to cancel out or resist this roll.  As counterintuitive as it first sounds, lower initial stability is also a positive factor in terms of safety at sea and greater overall stability of a boat so these paravanes take advantage of this relationship to help keep the boat more level when Mother Nature is trying to cause her to roll.

IMG_6560At the other end of the A-Frames these bits of 25mm / 1” thick AL create the hinged attachment points connected to their matching 50mm / 2” thick other halves welded through the Rub Rails which transfer all the loads directly to the inner framework of the hull.
IMG_6559To be clear, active stabilizers reduce the roll to a greater degree when underway but they come at a “cost” in both complexity, drag, maintenance, fault tolerance and expense so for us former long distance sailors we think that passive paravanes will be a better fit for us and our use cases.
All yet to be confirmed by real world experience of course so stay tuned for that after we launch and start putting all these systems to the real test out at sea.  We will extend these real world sea trials gathering data and experience once we start heading West across the Med and then crossing the Atlantic next summer.  Such in person testing on multiple ocean crossings and other situations which will enable us to make much more informed decisions on the changes and improvements we want to make in the future including whether we would like to add active stabilization in the future.  Stay tuned for much more of that.

20190820_113452596_iOSFinishing up this Weekly Progress Update with the Cabinetry team they have been busy installing the grids for the walls in the Guest Cabin.  You’ve seen the technique used in previous posts which is to glue solid wood spacer blocks through cut outs in the multi layered acoustic insulation to the underlying 5mm AL plate.
IMG_6563The lattice style wall grids are then glued and screwed to the ends of these wood spacer blocks.  All the wood is thoroughly sealed with multiple coats of white epoxy paint and provide nice smooth non porous surfaces which are easy to keep clean and help with one of our other fundamental principles of low maintenance.


If you look closely on the inside of second horizontal grid off the floor you can see how the grid is also used to mount perforated trays to carry hoses, pipes and wires across the Cabins.
SIJM6721Omer continues this way working his way across the aft WT Bulkhead which isolates the Guest Cabin from the Workshop and ER.
20190824_114259261_iOSHe soon has the grid completed surrounding the WT door at the end of the corridor outside the Guest Cabin where you can enter the Port/Left wing of the Workshop.
IMG_6566Spinning around to look forward and diagonally across the Guest Cabin to the Starboard side Omer has picked up where he left off last week by mounting the grids where the Cabin transforms into the Galley cupboards with the stove and oven.


As we covered in last week’s update this transition and grid has aluminium stepped frames to span the offset area between where the Galley floor ends and the massive aft frame begins.


IMG_6565Zooming in on the far end to better see how the stepped grid as it clears the fuel hoses.  The blue clamp is clamping the grid to the stepped aluminium frame hidden behind.  If you look closely (click to enlarge any photo) at the upper right corner of the photo above, you can make out this outer 50mm/ 2” L bar.
That’s it for the week that was August 19 to 23, 2019 and all thanks to everyone on Team Möbius with an extra shout out to Yiğit for taking all these photos for your intrepid reporter who is now sailing past several of the worlds largest and most impressive “GigaYachts” (Super no longer applies) here in Sardinia including the Maltese Falcon, A and Dilbar.  I’ll create a bit of a photo summary of these boats for you next week.

Ciao for now,

Wayne

GRIDLOCKED CABINS:  Progress Update Aug. 15&16, 2019

GRIDLOCKED CABINS: Progress Update Aug. 15&16, 2019

Everyone at Naval Yachts had a well deserved break to celebrate the big four day Kurban Bayramı holiday as families gathered to enjoy time with each other and friends and LOTS of great food.  So a short blog update for this two day work week.  As the title is meant to suggest most of the work the past two days has been on installing the wood grids on the walls in the Master and Guest cabins.  These grids anchor all the walls and some cabinetry to the aluminium bulkheads, floors and ceiling frames and provide space for acoustic insulation and any  wiring and plumbing which needs to travel through these walls.  Let’s go check it out onboard XPM78-01 Möbius.

Master Head Diagonal AllFor orientation here is a quick render of the Shower and Head are in the Master Cabin.
IMG_20190815_182746As we saw last week all the cabinetry along the Starboard/Right side of the Master Cabin and the forwardmost wall and door into the Head/Bathroom have all been fitted.  This week the wall and door which sit alongside the Vanity sink cabinet you see here have been taken back to the Cabinetry workshop for final sanding and the new addition is this short laminated wood section of the shower wall that joins the glass wall to the hull sides.

IMG_20190808_171844Now Omur and Selim move on to putting in the grid on the other end of the Master Cabin where the WT Bulkhead between the Master Cabin and the Basement forms the aft wall.
IMG_20190809_130302The white acoustic insulation is cut away and small 40mm/1.5” solid wood blocks are adhered to the underlying aluminium plate and then the lattice grids are attached to those blocks.

IMG_20190809_130329The grid is made light and strong using lightweight marine plywood and this tongue and groove construction with these triangular gussets in each corner.  These grids create the foundation layer for attaching the finished panels using FastMount snap in connectors and a similar type grid will go on the ceiling as well.  Where needed the spaces in this grid can be used to run wiring for wall switches as well as plumbing in a few places, but almost all wiring and plumbing is routed along the hull sides in dedicated trays.

IMG_20190809_130419For those that didn’t see it last week, the grids are fastened to the underlying aluminium plate with solid wood blocks that are adhered to the aluminium with industrial adhesive (Sikaflex) which protrude through cut outs in 3 layer acoustic insulation you see under my thumb here.
IMG_20190815_113720Moving aft to the Guest Cabin & Christine’s Office we can see the whole process of installing the wall grids.  Omer has built the lattice grids in the Cabinetry shop and brought the first one aboard that goes on this short section of wall at the end of the Guest Cabin Head.
IMG_20190815_150018He starts by laying out the grid pattern for all the attachment blocks.
IMG_20190815_182343Soon has all the blocks glued in place…..
IMG_20190815_182411— checked to be sure they are all on the same plane using the laser level and they are now ready to be sealed with epoxy paint.
IMG_20190816_102841Aluminium and Cabinetry teams meet as Uğur (right) and Nihat (partially hidden) arrive to weld in the aluminium step framing that will help support the cabinetry, marble countertops, stove and oven at the aft end of the Galley.
011 Guest Cabin CK Office Layout labelledThis intersection between the Galley on the upper SuperSalon level and the Guest Cabin below takes awhile to visualise and this GA plan view will help.  If you compare the layout of the Galley in the upper view of the SuperSalon with the Guest Cabin below you will see how they overlap where the aft countertop with the induction cooktop and Speed Oven extends a bit into the upper space of the Guest Cabin.
MOBIUS_SALOON_RENDER (3)Here’s a reminder render of the Galley looking aft and the Guest Cabin is below those big aft windows.
Guest Cabin deskIf you study the upper left area in this render of the Guest Cabin you will see how this intersection works with the Oven and cabinetry from the Galley forming the step down from the ceiling with the bookcase underneath.
IMG_20190816_103111With those visual gymnastics you can hopefully now see how this all works with the aluminium step bracing now in place here.
IMG_20190816_102936Once the aluminium step frames were tacked in place Omer cut the slots in the upper edge of the grid and slid it in place for a test fit.
IMG_20190816_102943Looks good, Nihat and Uğur double check their aluminium framing and Omer checks the grid and everyone is happy.
IMG_20190816_151234Omer soon has all the grids attached along this wall and puts on another coat of white epoxy to seal the wood completely.
IMG_20190816_151218Here is what it looks like from the upper Galley area looking aft and down into the Guest Cabin.  The Galley cabinets will be built into this area with the aft countertop setting atop the uppermost aluminium step here.  How if you look back at the renderings above of the Galley and Guest Cabin you will see how this busy complex intersection all comes together.
That is where things are at when we finished up yesterday (Friday Aug. 16, 2019) and we’ll pick up from here in next week’s progress update.

I will be reporting on all that from afar mind you as Christine and I are taking time to go celebrate our anniversary with a few days in beautiful Napoli Italy and then an overnight ferry ride over to Cagliari on the island of Sardinia to get in some long awaited time with very dear friends and family on their 50’ catamaran “Wicked”.

IMG_20190817_100136So I’m with my Beautiful Bride and typing this from the comfort of the very nice Turkish Airlines lounge in the brand new IST airport.  A very nicely done airport and while this lounge doesn’t have all the multi levels of the famous TA Lounge in the old IST airport it has even more individual cooking and food stations, over 20 and I lost count each one custom cooking and preparing pretty much anything you can imagine.  One of my new favorite airports for layovers to be sure.


Not to worry though, Yiğit will be keeping us updated with lots of photos and daily calls, texts and Emails so I will be able to post a regular weekly update next weekend as everyone on Team Möbius continues to apply their skills and experience to this awemazing build process creating our Goldilocks just right, just for us, XPM boat.

See you next week!
